Q235B Steel Wire Mesh for a Madagascar Construction Project
Q235B welded steel wire mesh in a 200 x 200 x 8.55 mm specification was supplied to a Madagascar steel distributor for a construction project trial order.
HUILAI Editorial Team writes practical scaffolding guides based on product specifications, quality checks, export packing, and real buyer communication.
Project Background
The enquiry came from a steel products distributor in Madagascar. The company already had a regular supplier for this type of construction material, so its purchasing team was careful about testing a new source.
The required product was welded steel reinforcement mesh for construction work. The buyer specified a 200 x 200 mm mesh opening, an 8.55 mm wire diameter and a sheet size of 2.8 x 5.8 m. The project information listed Q235B steel and GB/T 701-2008.
The first discussions did not immediately become an order. The buyer wanted to understand the proposed material source, production control and how a trial shipment would be handled. We remained in contact through continued messages and several phone conversations, explaining the relevant supply conditions in China and how the order would be followed before shipment.
The buyer eventually chose to start with a trial order instead of changing a larger purchasing volume at once.
Project Information
Madagascar Steel Wire Mesh Supply| Project Location | Madagascar |
|---|---|
| Application | Construction Projects |
| Standard / Material | Q235B SteelGB/T 701-2008 |
| Product Supplied | Welded Steel Reinforcement Mesh |
| Mesh Specification | 200 x 200 x 8.55 mm; 2.8 x 5.8 m per sheet |
| Shipping Time | February 6, 2025 |
| Buyer Type | Steel products distributor |
Confirming the Mesh Specification
Before the trial order moved forward, we worked from the dimensions supplied by the buyer:
- 200 x 200 mm mesh opening
- 8.55 mm wire diameter
- 2.8 x 5.8 m sheet size
- Q235B steel
- GB/T 701-2008 listed in the material requirement
The material designation and finished mesh dimensions were kept separate in the order information. GB/T 701-2008 was recorded as part of the buyer’s raw-material requirement rather than presented as a complete finished-mesh specification.
Because this was the buyer’s first purchase from us, consistency with the agreed dimensions was more important than expanding the product range or proposing unnecessary alternatives.
The supplied project record does not include the total order quantity, bundle weight, number of sheets or detailed dimensional tolerances. Those figures have therefore not been added to this case study.
Wire Diameter Inspection
One inspection photo records a micrometer check on a wire in the finished mesh. The digital display in the photograph reads 8.587 mm, close to the ordered nominal diameter of 8.55 mm.
This photograph documents one measurement only. It does not replace a complete inspection report and does not establish the sampling rate or dimensional tolerance for the whole order.

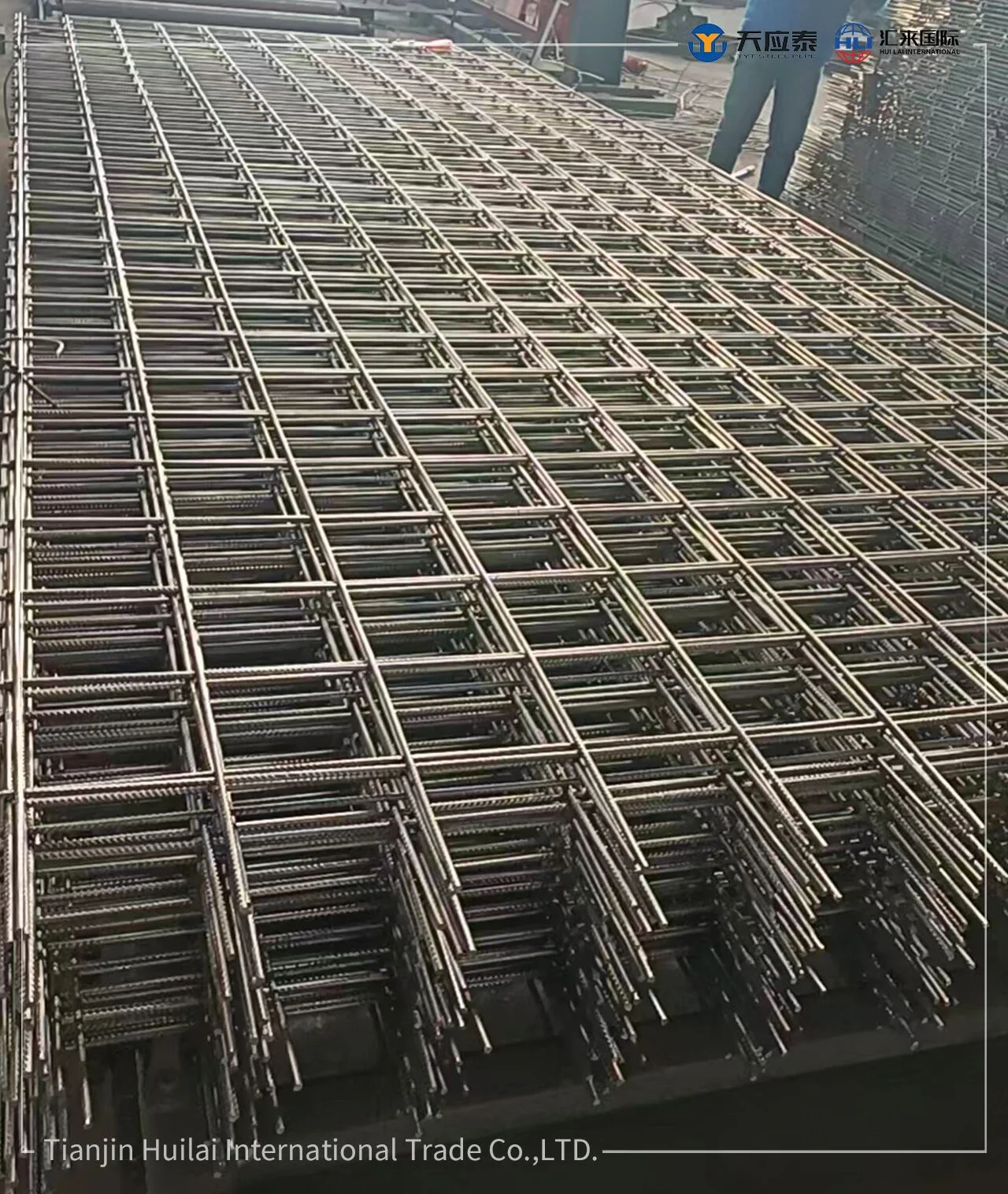

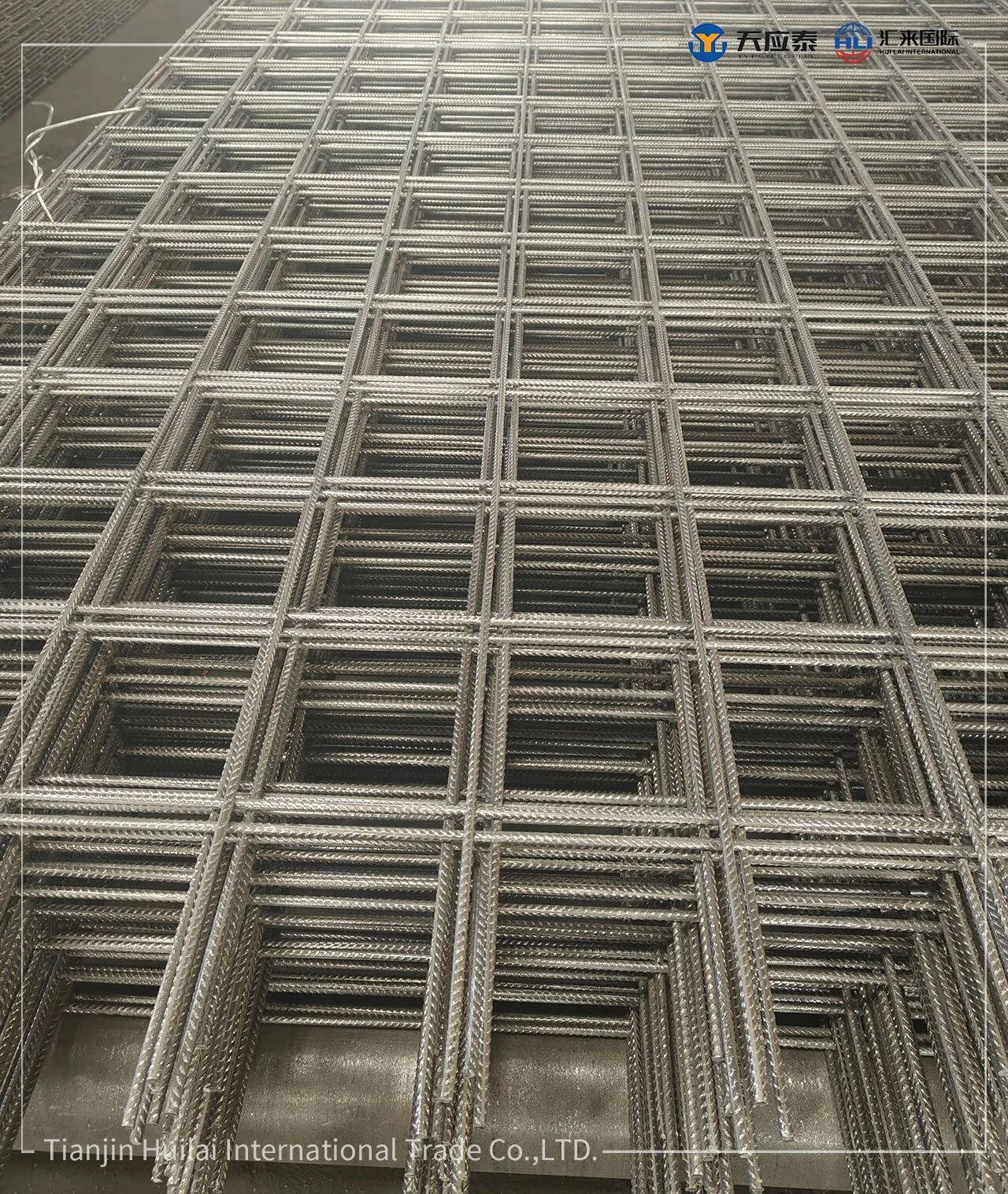

The factory photos also show the repeated mesh openings and the arrangement of the welded longitudinal and transverse wires across the sheets.
Starting with a Trial Order
The distributor did not replace its existing supplier immediately. Instead, the first purchase was treated as a trial order so the buyer could receive the mesh, compare it with its requirements and obtain feedback from the end customer.
This approach reduced the risk of changing sources. It also meant that the first shipment had to fit into an established supply chain and be evaluated alongside material the distributor already knew.
Throughout the follow-up, we focused on the confirmed specification, production control and delivery schedule rather than making unsupported promises about future volume.
Loading and Shipment to Madagascar
The steel wire mesh was shipped on February 6, 2025.

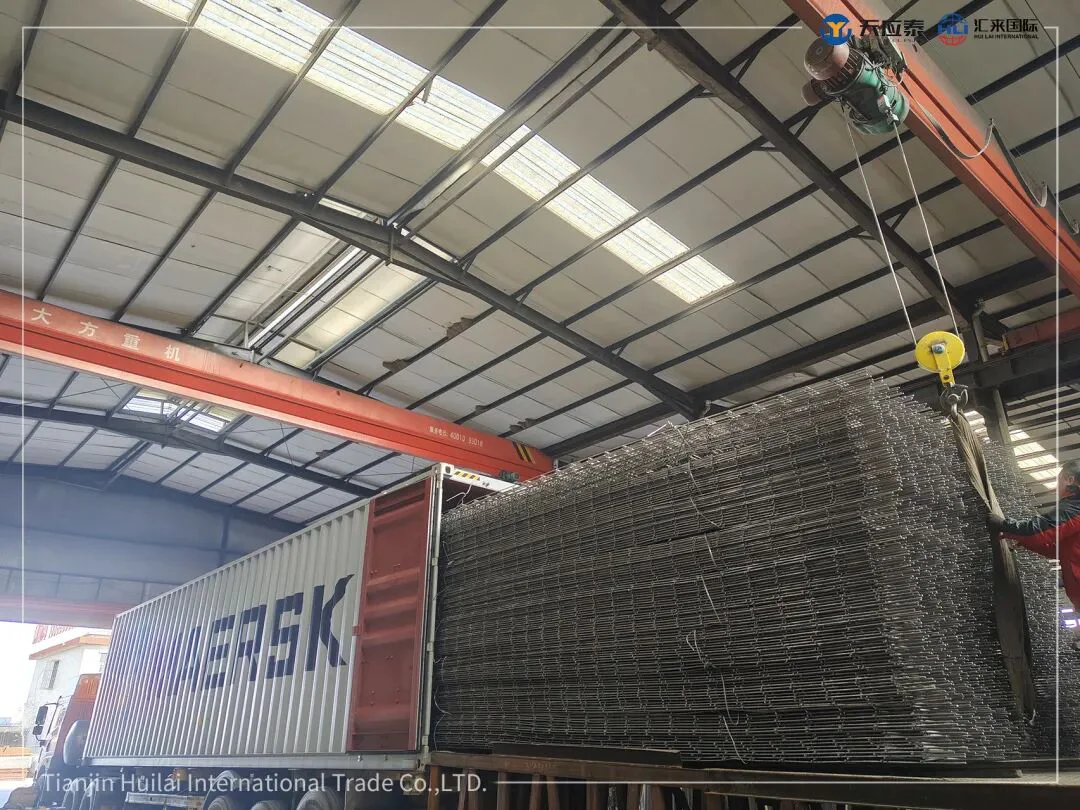

The loading photo shows a large group of bundled mesh sheets being lifted beside an open shipping container. The image confirms that the mesh was handled as stacked sheets during loading, but it does not show the total shipment quantity, bundle weights or container type.
After the goods arrived, the distributor passed the material to its end customer for evaluation. The feedback returned to us was concise: “The feedback is perfect.”
That comment is the only customer evaluation used in this article. No additional claims about project performance, repeat-order volume or future contracts have been inferred.
Notes for Similar Steel Wire Mesh Buyers
When requesting welded steel reinforcement mesh, provide the opening size, wire diameter, sheet width and sheet length in the same enquiry file. If the project has requirements for dimensional tolerance, sheet flatness, wire tensile properties, welded intersections, bundle weight or identification marks, include them before quotation.
Material standards should also be distinguished from finished-product dimensions. If a wire rod standard is specified, state clearly whether it applies to the incoming raw material or another part of the purchasing requirement.
For a first order with a new supplier, a separate trial quantity can give the buyer and end customer an opportunity to inspect the first shipment before considering a larger purchasing volume.
